Before we dive deep into the Istio Ambient Mesh architecture, let’s first understand the problem with sidecars. This will help you understand the advantages of Ambient Mode much better.

In the classic Istio sidecar model, every pod in your cluster runs two containers. Your app, and an Envoy proxy (sidecar) running right next to it. All inbound and outbound traffic for that app pod flows through the sidecar.

The sidecar proxy also handles all the service mesh features like encryption, traffic policies, retries, observability. But here is the problem. The cost adds up with every pod you deploy. For example, 10000 pods = 10000 proxies.

Also, upgrading Istio means restarting every pod in the mesh. That is a big maintenance headache.

The new Ambient mode removes the sidecar architecture entirely. Instead, it uses one proxy pod per-node that handle traffic for all pods on that node. Meaning, you get all the mesh capabilities without the per-pod sidecar proxy overhead.

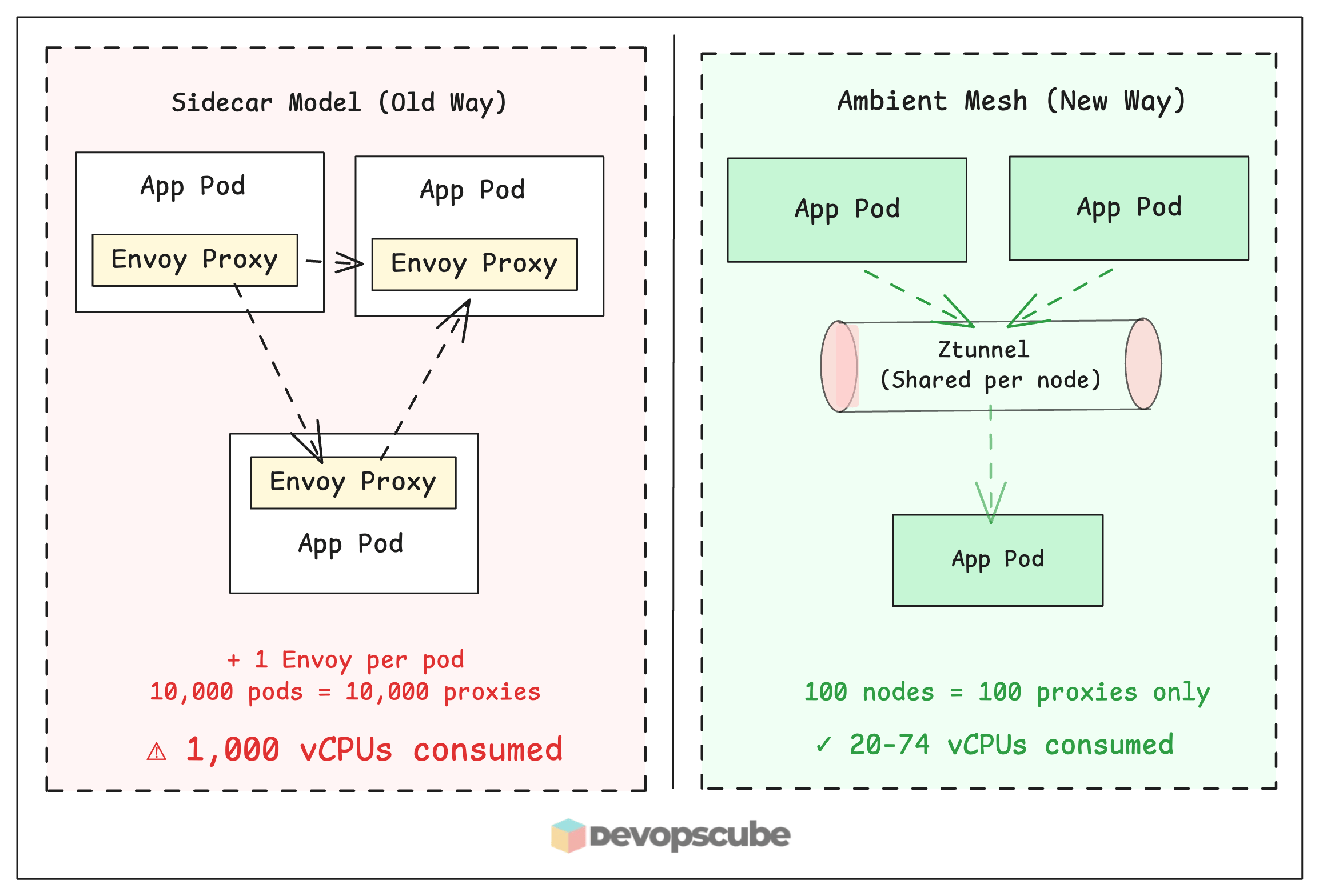

The following image illustrates the difference. Same cluster, but huge difference in resource usage.

Istio consists of the following key components.

The image below shows a high-level (1000-foot) overview of Istio components.

Lets dive deep into each component and see how it works and how it fits into the overall mesh architecture.

Think of Istiod as the brain of your service mesh. It doesn't handle any actual traffic. Instead, it tells all the proxy components (ztunnel, waypoint etc) on what rules to follow.

Initially the Istio control plane was split into three separate services. 1. Galley for config validation, 2. Pilot for traffic management, and 3. Citadel for security. Now they merged everything into a single binary called Istiod (the Istio Daemon).

Here is what Istiod does.

Ztunnel stands for Zero Trust Tunnel. It is a rust based proxy and the core building block of Ambient Mesh.

Instead of running a proxy inside every pod, Ztunnel runs as a DaemonSet (one pod per node). All traffic from pods on that node flows through the Ztunnel on the same node first.

Ztunnel handles all Layer 3 and Layer 4 features like encryption, identity, and basic access control. It uses the HBONE protocol (HTTP-Based Overlay Network Environment) to create encrypted tunnels between services.

Here is how it works.

If you compare this with the sidecar architecture, one common question people ask is,

Is ztunnel a single point of failure? What happens if ztunnel goes down on a node?

Since ztunnel runs as one pod per node, it may sound like a single point of failure. If ztunnel goes down, traffic to the pods on that specific node will be affected.

However, pods on other nodes are not impacted. Each node has its own healthy ztunnel instance. Because ztunnel runs as a DaemonSet, Kubernetes will automatically restart it, just like it does for any other daemonset pod.

So, is ztunnel a SPOF? Absolutely not.

The design assumes that nodes can fail, which is normal in distributed systems. Recovery is handled automatically by Kubernetes.

Ztunnel only understands TCP. Meaning, it has no idea about HTTP headers, request paths, or retry logic.

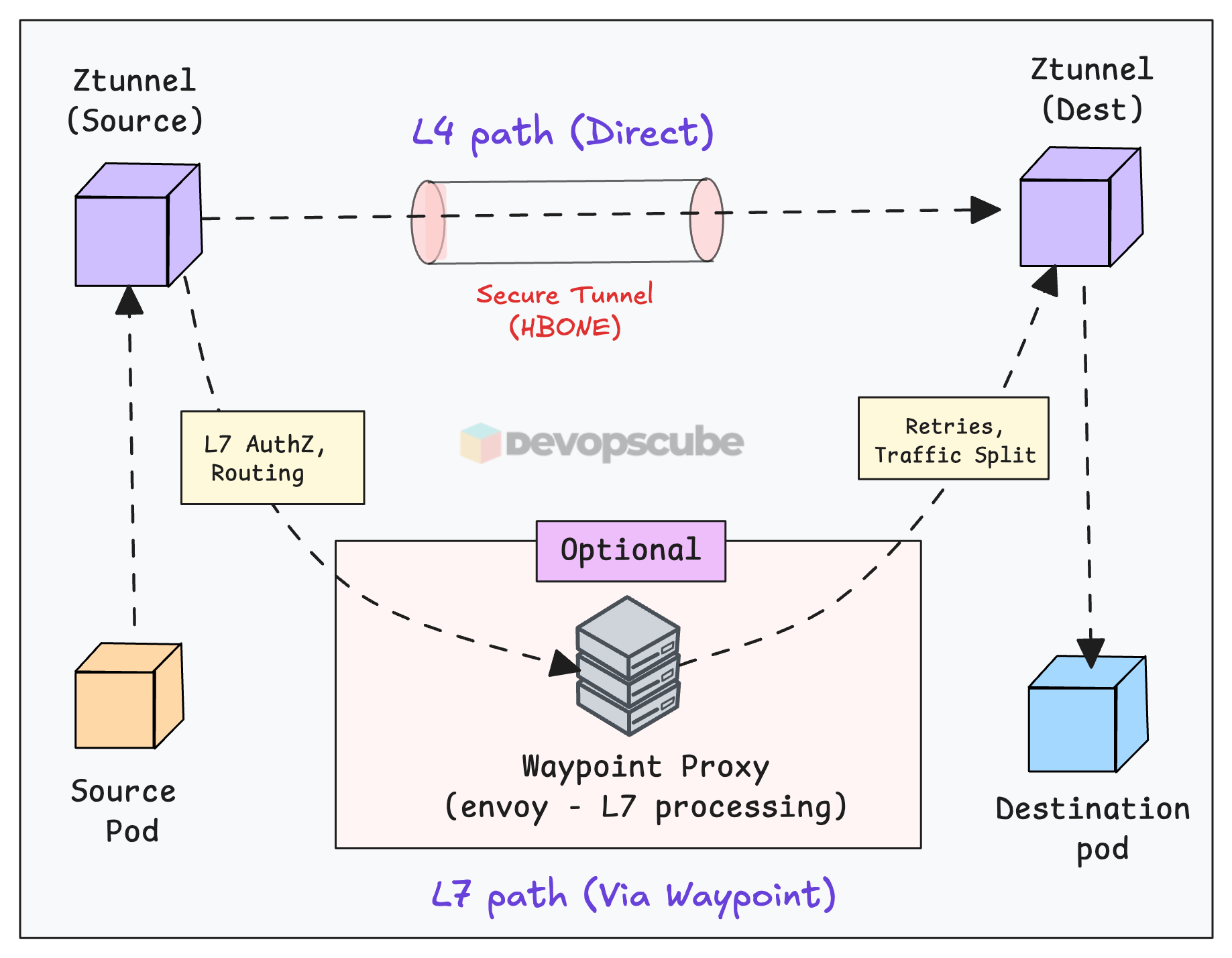

When you need Layer 7 features like HTTP routing, canary deployments, circuit breaking, rate limiting, or fault injection you need to implement an optional Waypoint Proxy (envoy).

Now, you may ask, why Waypoint is an optional component?

Well, not every service needs L7 features. So use it only when you actually need HTTP routing, circuit breaking, rate limiting etc. (Its a design choice).

Now, a key things to understand is, Waypoint proxy works on top of Ztunnel. It cannot function without Ztunnel being present. Ztunnel handles the L4 secure tunnel, Waypoint sits inside that tunnel and handles L7 logic.

Here is how it works.

Ztunnel and Waypoint handle east-west traffic. Meaning internal service-to-service communication inside your cluster.

But what about traffic coming in from outside? That's what Istio Gateway handles.

It works similarly to a Kubernetes Ingress controller. When you create an Istio Gateway object, it spins up an external Load Balancer. All traffic entering the cluster goes through this gateway first.

Here is how it works.

Your app doesn't know Istio exists. There is no proxy injected into the pod.

So how does traffic from your pods actually end up at Ztunnel?

Well, that is the job of Istio CNI. It is a DaemonSet that runs on every node and creates iptables rules inside your pod's network namespace to redirect traffic to the local Ztunnel.

Here is how it works.

We used the Ambient mesh cost calculator for resource comparison between the traditional Istio Sidecar architecture and the Ambient Mesh architecture.

The comparison is based on a large-scale cluster with 10,000 pods, 50 namespaces, and 100 nodes.

The following image illustrates the significant infrastructure savings both in terms of compute resources and monetary cost (up to $432,674) that organizations can achieve by switching to Ambient mode.

In a sidecar model, every pod runs its own Envoy proxy. In this example, those 10,000 proxies consume a massive amount of CPU and RAM.

Because Ambient Mesh uses a shared Ztunnel per node (only 100 proxies total in this scenario) instead of one per pod, the CPU requirements drop from 1,000 vCPUs to just 20–74 vCPUs.

Now that you have a full understanding of how Ambient Mesh works, its time to get your hands dirty with a sample implementation.

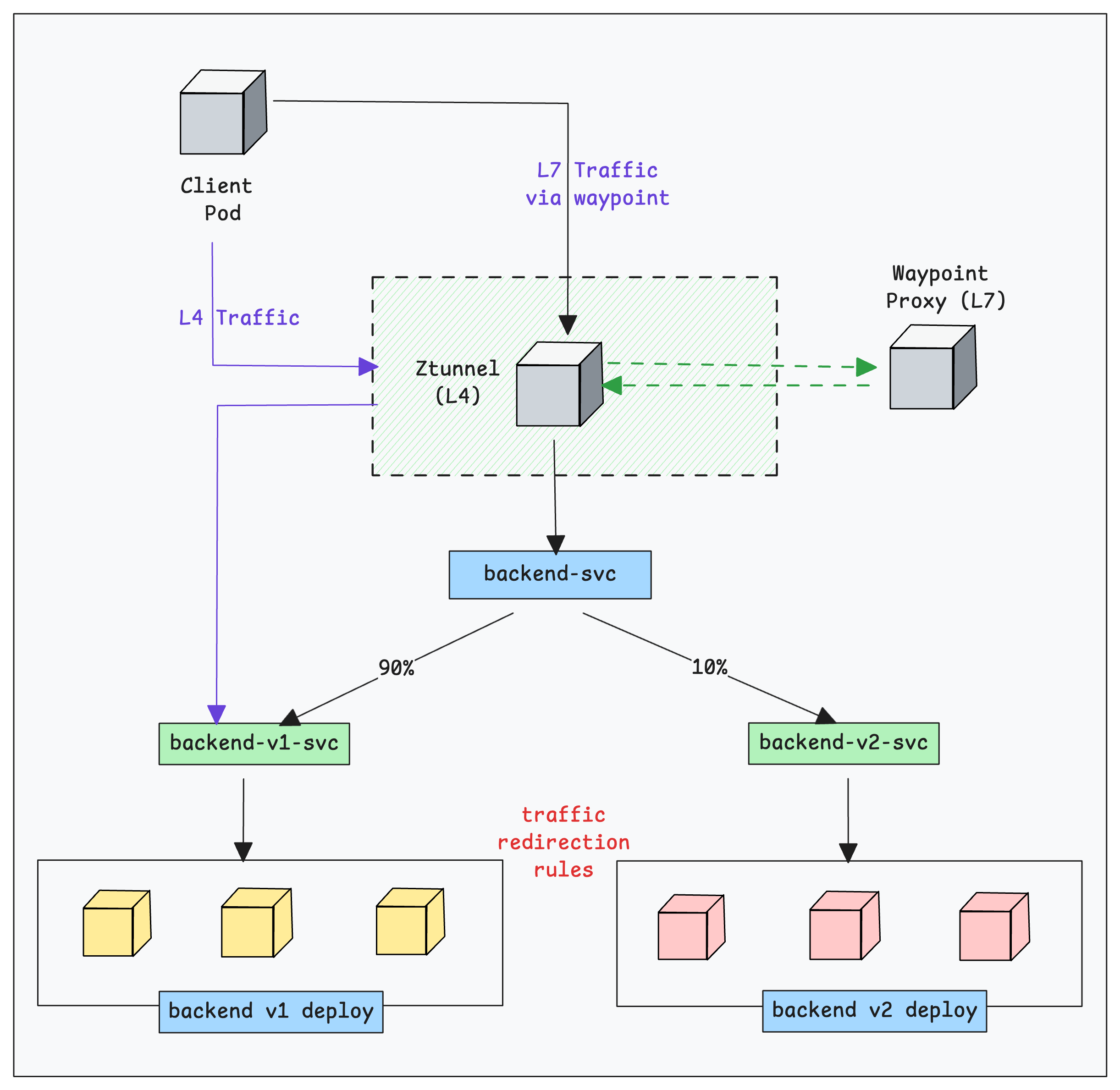

Below, I have shared an end-to-end tutorial where you set up Ambient Mesh and deploy a sample application to test both L4 and L7 traffic capabilities.

By the end of this tutorial, you will have learned the following using hands-on tutorial.
